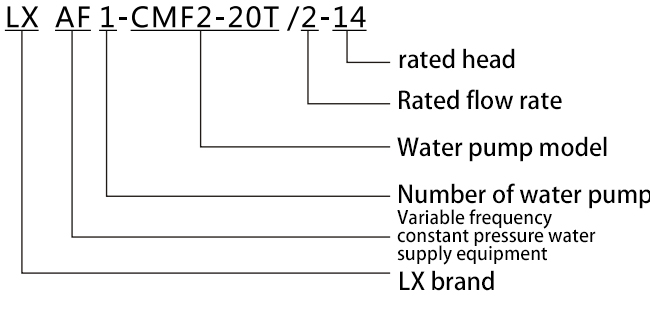

Model Explanation

Integrated intelligent variable frequency constant pressure water pump designed for small household water supply users.

The frequency converter is small, exquisite, and compact, with an integrated design, IP54 protection level, dustproof and waterproof,

Featuring superior performance and adopting a wide voltage design, it can calmly cope with unstable power grid voltage, suitable for home use

Improving the quality of water supply systems for various occasions such as domestic water use and irrigation, with smaller volume and lighter weight, indoor

Unlimited placement, easy to operate, and cost-effective.

LXAF series frequency conversion constant pressure stainless steel horizontal centrifugal pump water supply selection specifications

Functional Features

1、Pump power ≤ 1.1kW, equipped with single-phase input frequency converter, easy to use at home.

2、Set the required pressure directly on the controller, fully automatic frequency control operation.

3、Water pressure is kept constant, energy efficient, low noise motor design.

4、P.I.D control mode, no one uses water to stop the pump automatically, some people use water to run automatically.

5、Automatic reset function: the system starts automatically when power or water outage is restored.

6、Automatic protection function: overload, phase loss, over-voltage, low-voltage and water shortage shutdown.

7、Easy to operate, install and maintain, high reliability.

8、Pump overflow parts all stainless steel SUS304/SUS316, to protect the safety and health of water.

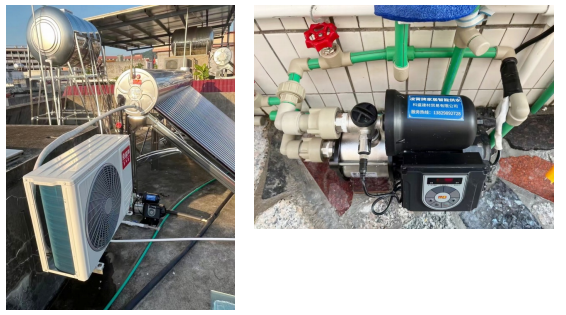

Application

Hotels, villas, shopping malls, schools, residential neighborhoods.

Garden irrigation, vegetable greenhouse water supply.

Other special pressure stabilizing equipment, water treatment equipment.

Conveying liquids

1.Thin, clean, non-flammable and explosive liquids containing no solid particles or fibers.

2.Tap water, mineral water, softened water, pure water, light oil and other light chemical media.

Environment and working conditions

Control mode: frequency conversion control

Installation place:Indoor

Environmental temperature:≤+50°C

air humidity: < 90%

fluid temperature: -20~+ 70°C

Maximum outlet pressure: 10bar

Minimum outlet pressure: 0.05bar

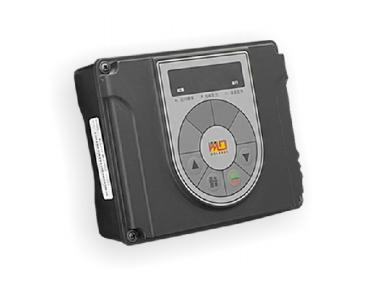

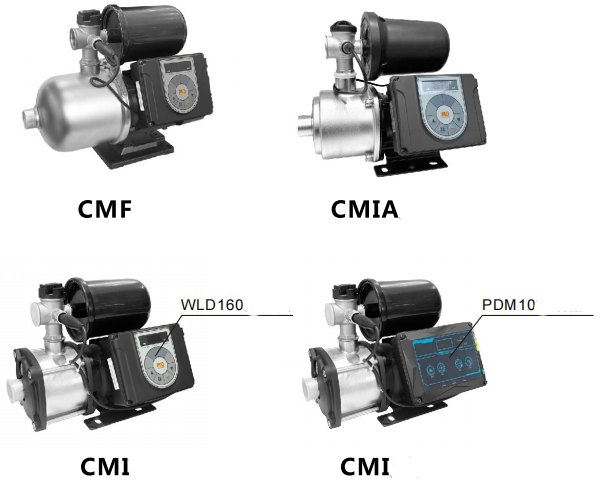

Main components

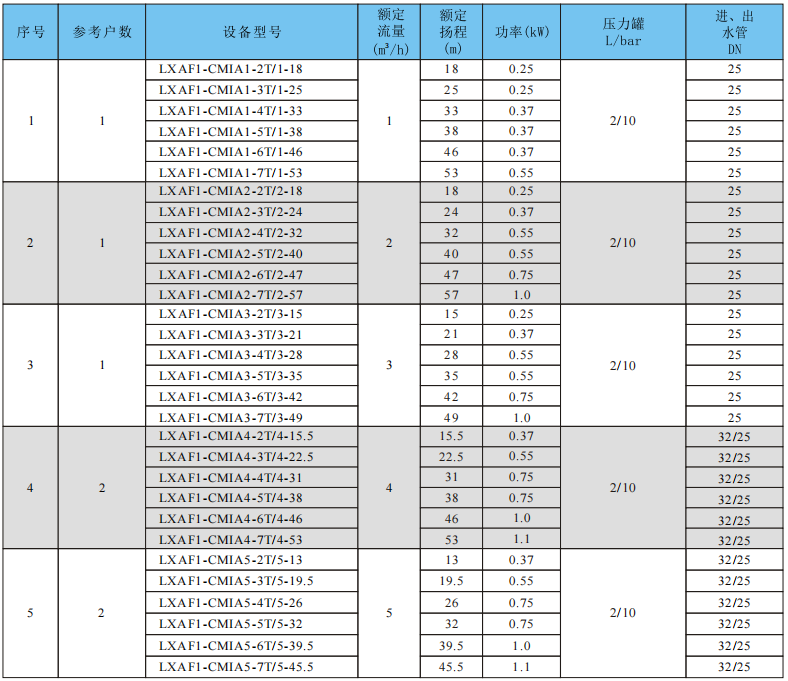

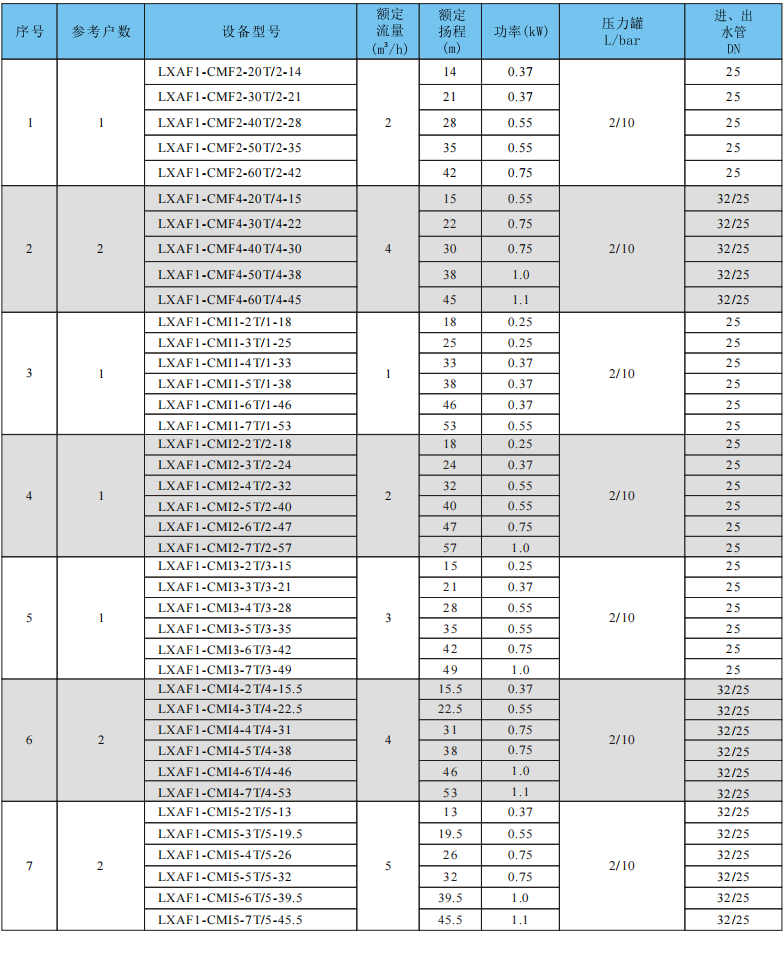

LXAF1-CMF/CMI series horizontal frequency conversion constant pressure water supply equipment selection parameters

LXAF1-CMIA Series Horizontal Frequency Conversion Constant Pressure Water Supply Equipment Overview

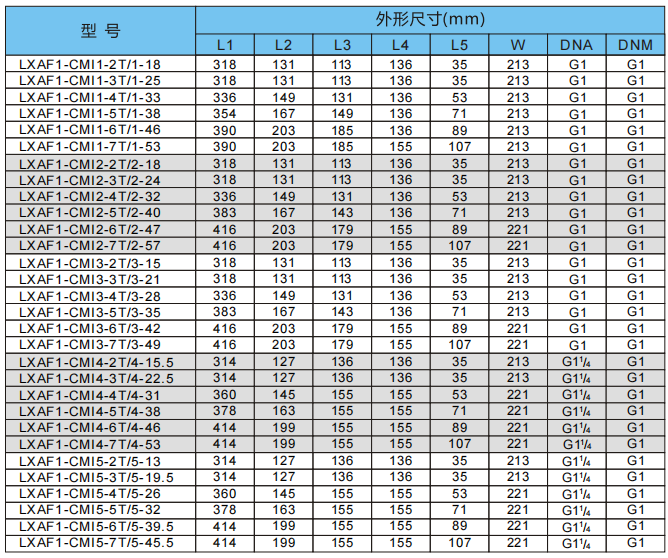

LXAF1-CMF /CMI series horizontal frequency conversion constant pressure water supply equipment size table

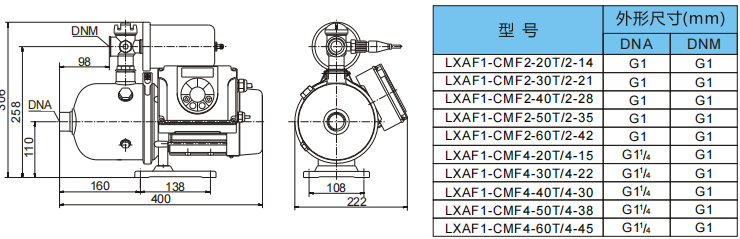

LXAF1-CMF Series Outline Mounting Dimensions

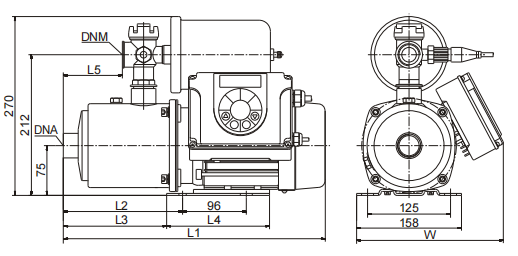

LXAF1-CMI Series Outline Mounting Dimensions

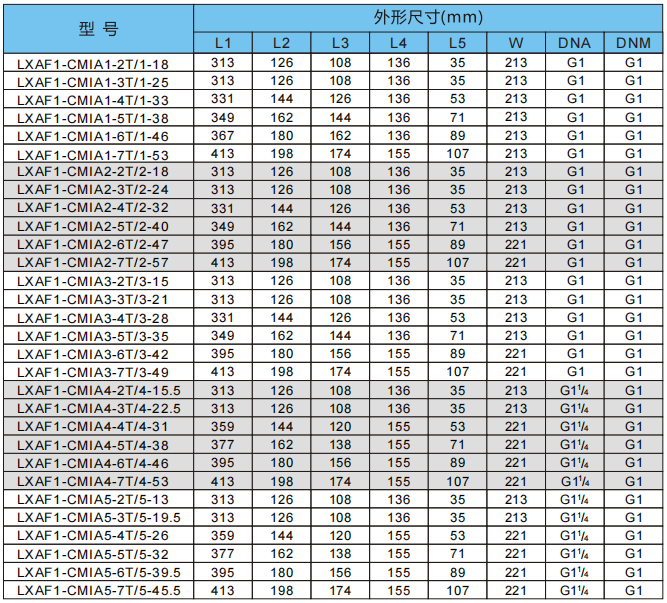

LXAF1-CMIA Series Horizontal Frequency Conversion Constant Pressure Water Supply Equipment Dimension Table

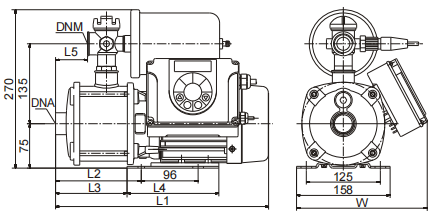

LXAF1-CMIA Series Outline Mounting Dimensions
